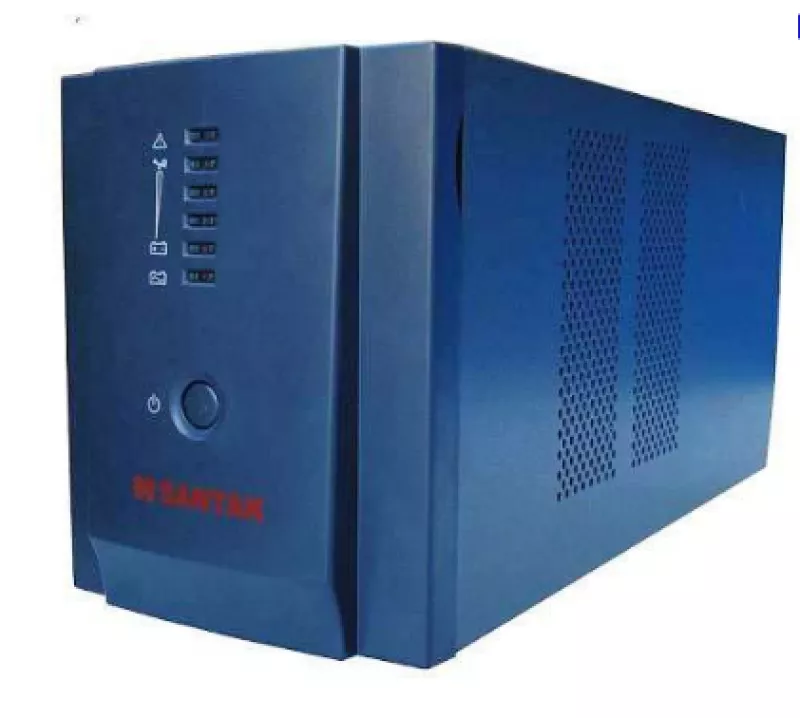

UPS BLAZER E 1000 1000VA / 600W Santak

Product Series

BLAZER

Model

BLAZER 600

BLAZER 800

BLAZER1000

BLAZER1400

BLAZER2000

Rated Power

VA/W

600/360

800/480

1000/600

1400/840

2000/1080

Input

Nominal Voltage

220VAC

Voltage Range

162 ~ 268VAC

Nominal Frequency

50Hz

Protection

Fuse

Non-Fuse breaker

Connection

IEC320-10A inlet

Output

Voltage

220VAC

Regulation

±10% on battery voltage regulation; ±15% on utility voltage regulation

Frequency

50Hz ±1Hz ( Battery mode)

Overload Capability

110% for 5 min., 120% immediate shutdown

Connections

IEC320-10A * 3

IEC320-10A * 4

Battery

Type

Sealed Lead-Acid, Maintenance free

Backup Time

20 min.(a PC with 15” monitor)

30 min.(a PC with 15” monitor)

23 min.
(two PCs with 15” monitors)

25 min.
(two PCs with 15” monitors)

Recharge Time

8 hours to 90% capacity after full load discharge

LED indicators

Line Mode

Green LED lighting

The 1st green LED lighting; the 2nd to 5th green LEDs indicating load level

Battery Mode

Green LED flashing

The 1st green LED flashing; the 2nd to 5th green LEDs indicating battery capacity level

Fault

--

Red LED lighting

Audible Alarm

Battery Mode

Beeping every 10 seconds

Battery Low

Beeping every second

Overload

Beeping every 0.5 seconds

Fault

Beeping continuously

Acoustic Noise

£ 45 dBA

Data Line Surge Protection

RJ11 I/O jacks

Communications

RS232 and USB ports

Environmental

Temperature

0 ~ 40°C

Humidity

20% ~ 90% non-condensing

Weight

Net (kg)

6

6.5

13.8
