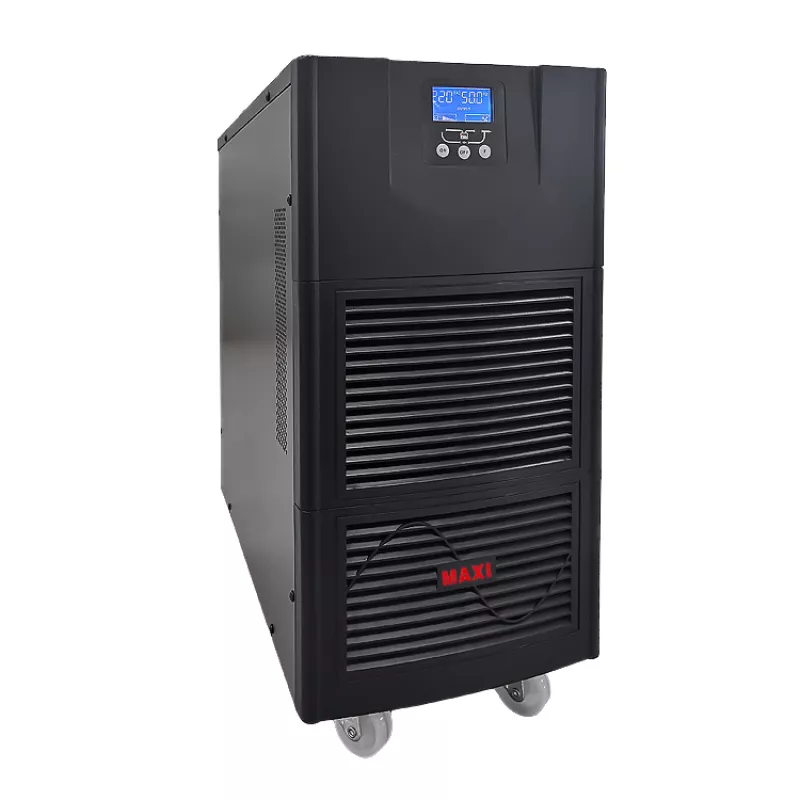

Bộ lưu điện UPS MAXI MXP 10KLCD

Rating

10KVA/9KW

Input

Input system

Single phase & earth ground

Voltage range

(120±5)VAC~ (274±5)VAC

Power factor

≥0.99

Voltage range of bypass

(60±5)VAC~ (300±5)VAC (default: 80VAC~264VAC Could be adjusted by software)

Output

Output system

Single phase & earth ground

Rated voltage

220VAC  ^①

Power factor

0.9

Voltage precision

±1%

Output frequency

Normal mode

1.The output frequency synchronizes with the input frequency when the input frequency is in the range of  46 Hz~ 54 Hz.

2.The output frequency is 50Hz when the input frequency is not in the range of 46 Hz~ 54 Hz.

3.Can be set as 60Hz.

Battery mode

Inverter overload capacity (Utility power, 25℃)

105% ±5% < Load ≤ 125% ± 5% 60s transfer to bypass

125% ±5% < Load < 135% ± 5% 30s transfer to bypass

Load > 135% ± 5%, 100ms transfer to bypass

Transfer time

0ms (Normal mode←→ Battery mode)

<4ms (Normal mode←→Bypass mode)
